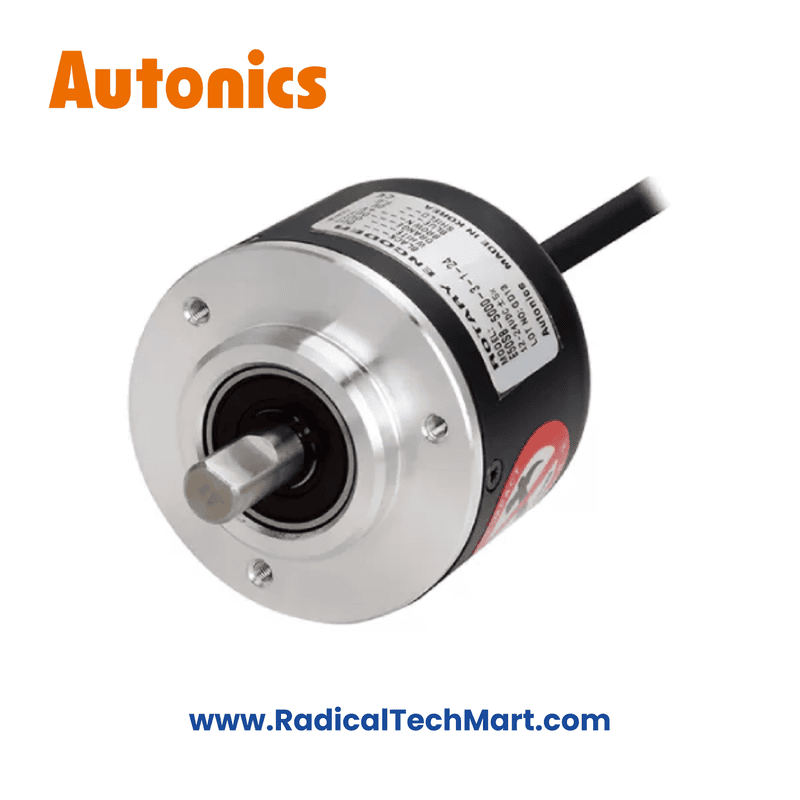

E50S8-600-3-T-1 Autonics Encoder
Non-returnable
₹7,799.00
Product Details
| Product | Description |
|---|---|
| Brand | Autonics |
| Model No. | E50S8-500-3-T-1 |
| Series | E50S Series shaft type of Incremental Rotary Encoder |
| Diameter | 50mm, Shaft Type |
| Shaft Outer Diameter | 8mm |
| Max. Response Frequency | 300kHz |
| Max. Allowable Revolution | 5000rpm |
| Starting Torque | Max. 70gf.cm(max. 0.00686N.m) |
| Resolution | 500PPR |
| Output Phase | A, B, Z |
| Control Output | Totem pole |
| Connection Type | Axial cable type |
| Protection Structure | IP50 |
| Ambient Temperature | -10 to 70℃, storage: -25 to 85℃ |
| Ambient Humidity | 35 to 85% RH, storage: 35 to 90% RH |
| Accessories | 8mm coupling, Bracket |
| Weight | Approx. 363g(approx. 275g) |
